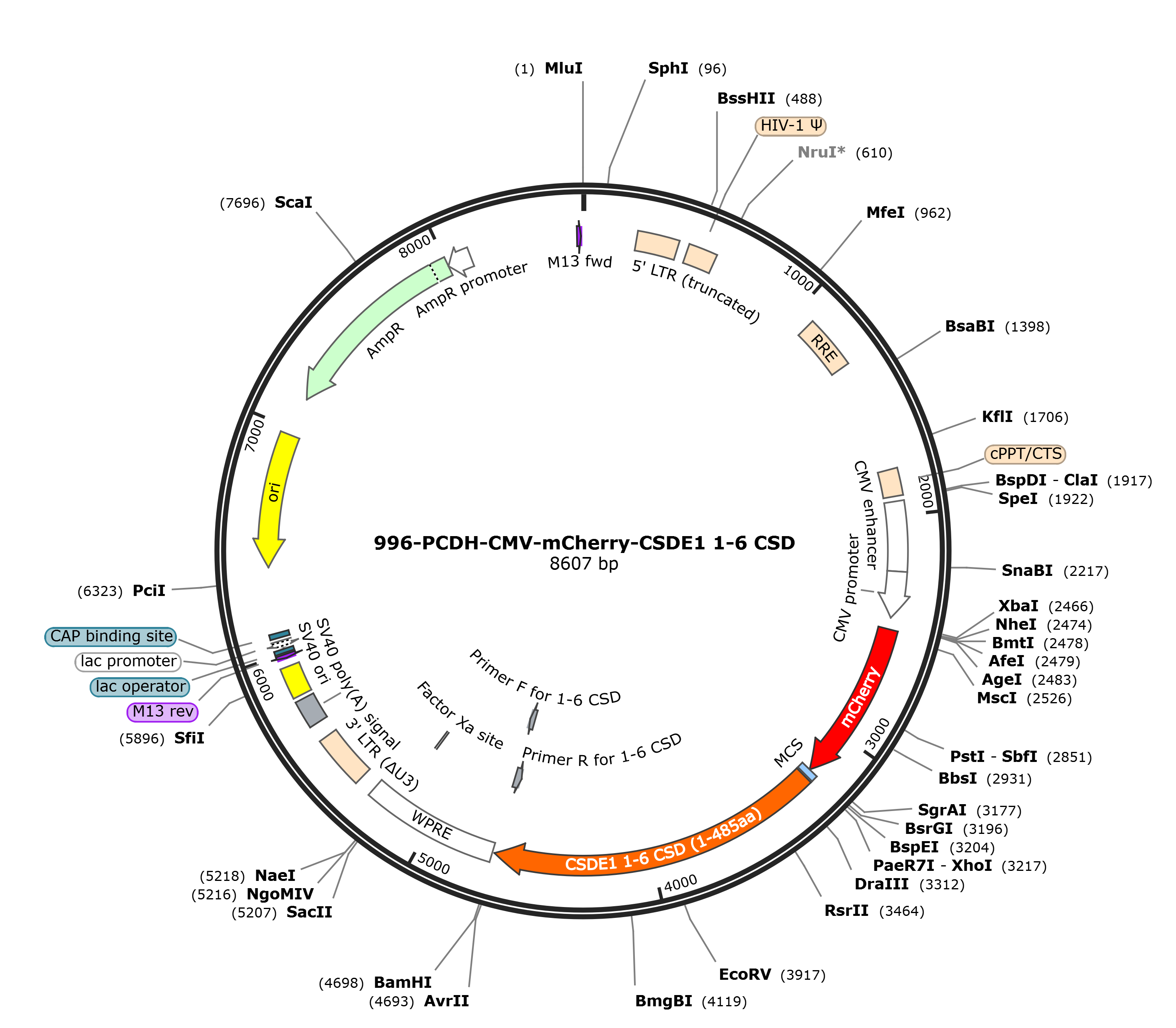

pCDH-CMV-mCherry-CSDE1 1-6CSD

LOCUS       pCDH-CMV-mCherry-CSDE1 1-6CSD              8607 bp DNA     circular SYN 07-MAY-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8607)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 2, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8607
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     2909..2928
                     /label=mCherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     CDS             3240..4694
                     /codon_start=1
                     /label=CSDE1 1-6 CSD (1-485aa)
                     /translation="MSFDPNLLHNNGHNGYPNGTSAALRETGVIEKLLTSYGFIQCSER
                     QARLFFHCSQYNGNLQDLKVGDDVEFEVSSDRRTGKPIAVKLVKIKQEILPEERMNGQE
                     VFYLTYTPEDVEGNVQLETGDKINFVIDNNKHTGAVSARNIMLLKKKQARCQGVVCAMK
                     EAFGFIERGDVVKEIFFHYSEFKGDLETLQPGDDVEFTIKDRNGKEVATDVRLLPQGTV
                     IFEDISIEHFEGTVTKVIPKVPSKNQNDPLPGRIKVDFVIPKELPFGDKDTKSKVTLLE
                     GDHVRFNISTDRRDKLERATNIEVLSNTFQFTNEAREMGVIAAMRDGFGFIKCVDRDVR
                     MFFHFSEILDGNQLHIADEVEFTVVPDMLSAQRNHAIRIKKLPKGTVSFHSHSDHRFLG
                     TVEKEATFSNPKTTSPNKGKEKEAEDGIIAYDDCGVKLTIAFQAKDVEGSTSPQIGDKV
                     EFSISDKQRPGQQVATCVRLLGRNSNS"
     misc_feature    complement(4664..4702)
                     /label=Primer R for 1-6 CSD
     misc_feature    4682..4720
                     /label=Primer F for 1-6 CSD
     misc_feature    4704..5291
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5175..5186)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5364..5597
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5669..5790
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5809..5944
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5982..5998)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    6006..6022
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(6030..6060)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    6075..6096
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6384..6972)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7143..8003)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(8004..8108)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     8582..8598
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tgagctttga tccaaacctt ctccacaaca atggacataa tgggtaccct aatggtactt
     3301 cagcagcact gcgtgaaact ggggttattg aaaaactgtt aacctcttac ggatttattc
     3361 agtgttcaga acgtcaagct agacttttct tccactgttc acagtataat ggcaacctgc
     3421 aagacttaaa agtaggagat gatgttgaat ttgaagtatc atcggaccga cggactggga
     3481 aacccattgc tgttaaactg gtgaagataa aacaagaaat cctccctgaa gaacgaatga
     3541 atggacaaga agtgttttat ctgacttaca cccctgaaga tgtcgaaggg aacgttcagc
     3601 tggaaactgg agataaaata aactttgtaa ttgataacaa taaacatact ggtgctgtaa
     3661 gtgctcgcaa cattatgctg ttgaaaaaga aacaagcccg ctgtcaggga gtagtttgtg
     3721 ccatgaagga ggcatttggc tttattgaaa gaggtgatgt tgtaaaagag atattctttc
     3781 actatagtga atttaagggt gacttagaaa ccttacagcc tggcgatgat gtggaattca
     3841 caatcaagga cagaaatggt aaagaagttg caacagatgt cagactattg cctcaaggaa
     3901 cagtcatttt tgaagatatc agcattgaac attttgaagg aactgtaacc aaagttatcc
     3961 caaaagtacc cagtaaaaac cagaatgacc cattgccagg acgcatcaaa gttgactttg
     4021 tgatccctaa agaacttccc tttggagaca aagatacgaa atccaaggtg accctgctgg
     4081 aaggtgacca tgttaggttt aatatttcaa cagaccgacg tgacaaatta gagcgagcaa
     4141 ccaatataga agttctgtca aatacatttc agttcactaa tgaagcccga gaaatgggtg
     4201 tgattgctgc catgagagat ggttttggtt tcatcaagtg tgtggatcgt gatgttcgta
     4261 tgttcttcca cttcagtgaa attctggatg ggaaccagct ccatattgca gatgaagtag
     4321 agtttactgt ggttcctgat atgctctctg ctcaaagaaa tcatgctatt aggattaaaa
     4381 aacttcccaa gggcacggtt tcatttcatt cccattcaga tcaccgtttt ctgggcacgg
     4441 tagaaaaaga agccactttt tccaatccta aaaccactag cccaaataaa ggcaaagaga
     4501 aggaggctga ggatggcatt attgcttatg atgactgtgg ggtgaaactg actattgctt
     4561 ttcaagccaa ggatgtggaa ggatctactt ctcctcaaat aggagataag gttgaattta
     4621 gtattagtga caaacagagg cctggacagc aggttgcaac ttgtgtgcga cttttaggtc
     4681 gtaattctaa ctcctaggga tccaatcaac ctctggatta caaaatttgt gaaagattga
     4741 ctggtattct taactatgtt gctcctttta cgctatgtgg atacgctgct ttaatgcctt
     4801 tgtatcatgc tattgcttcc cgtatggctt tcattttctc ctccttgtat aaatcctggt
     4861 tgctgtctct ttatgaggag ttgtggcccg ttgtcaggca acgtggcgtg gtgtgcactg
     4921 tgtttgctga cgcaaccccc actggttggg gcattgccac cacctgtcag ctcctttccg
     4981 ggactttcgc tttccccctc cctattgcca cggcggaact catcgccgcc tgccttgccc
     5041 gctgctggac aggggctcgg ctgttgggca ctgacaattc cgtggtgttg tcggggaagc
     5101 tgacgtcctt tccatggctg ctcgcctgtg ttgccacctg gattctgcgc gggacgtcct
     5161 tctgctacgt cccttcggcc ctcaatccag cggaccttcc ttcccgcggc ctgctgccgg
     5221 ctctgcggcc tcttccgcgt ctccgccttc gccctcagac gagtcggatc tccctttggc
     5281 cgcctccccg ccggtacctt taagaccaat gacttacaag gcagctgtag atcttagcca
     5341 ctttttaaaa gaaaaggggg gactggaagg gctaattcac tcccaacgaa aataagatct
     5401 gctttttgct tgtactgggt ctctctggtt agaccagatc tgagcctggg agctctctgg
     5461 ctaactaggg aacccactgc ttaagcctca ataaagcttg ccttgagtgc ttcaagtagt
     5521 gtgtgcccgt ctgttgtgtg actctggtaa ctagagatcc ctcagaccct tttagtcagt
     5581 gtggaaaatc tctagcagta gtagttcatg tcatcttatt attcagtatt tataacttgc
     5641 aaagaaatga atatcagaga gtgagaggaa cttgtttatt gcagcttata atggttacaa
     5701 ataaagcaat agcatcacaa atttcacaaa taaagcattt ttttcactgc attctagttg
     5761 tggtttgtcc aaactcatca atgtatctta tcatgtctgg ctctagctat cccgccccta
     5821 actccgccca gttccgccca ttctccgccc catggctgac taattttttt tatttatgca
     5881 gaggccgagg ccgcctcggc ctctgagcta ttccagaagt agtgaggagg cttttttgga
     5941 ggcctagact tttgcagaga cggcccaaat tcgtaatcat ggtcatagct gtttcctgtg
     6001 tgaaattgtt atccgctcac aattccacac aacatacgag ccggaagcat aaagtgtaaa
     6061 gcctggggtg cctaatgagt gagctaactc acattaattg cgttgcgctc actgcccgct
     6121 ttccagtcgg gaaacctgtc gtgccagctg cattaatgaa tcggccaacg cgcggggaga
     6181 ggcggtttgc gtattgggcg ctcttccgct tcctcgctca ctgactcgct gcgctcggtc
     6241 gttcggctgc ggcgagcggt atcagctcac tcaaaggcgg taatacggtt atccacagaa
     6301 tcaggggata acgcaggaaa gaacatgtga gcaaaaggcc agcaaaaggc caggaaccgt
     6361 aaaaaggccg cgttgctggc gtttttccat aggctccgcc cccctgacga gcatcacaaa
     6421 aatcgacgct caagtcagag gtggcgaaac ccgacaggac tataaagata ccaggcgttt
     6481 ccccctggaa gctccctcgt gcgctctcct gttccgaccc tgccgcttac cggatacctg
     6541 tccgcctttc tcccttcggg aagcgtggcg ctttctcata gctcacgctg taggtatctc
     6601 agttcggtgt aggtcgttcg ctccaagctg ggctgtgtgc acgaaccccc cgttcagccc
     6661 gaccgctgcg ccttatccgg taactatcgt cttgagtcca acccggtaag acacgactta
     6721 tcgccactgg cagcagccac tggtaacagg attagcagag cgaggtatgt aggcggtgct
     6781 acagagttct tgaagtggtg gcctaactac ggctacacta gaaggacagt atttggtatc
     6841 tgcgctctgc tgaagccagt taccttcgga aaaagagttg gtagctcttg atccggcaaa
     6901 caaaccaccg ctggtagcgg tggttttttt gtttgcaagc agcagattac gcgcagaaaa
     6961 aaaggatctc aagaagatcc tttgatcttt tctacggggt ctgacgctca gtggaacgaa
     7021 aactcacgtt aagggatttt ggtcatgaga ttatcaaaaa ggatcttcac ctagatcctt
     7081 ttaaattaaa aatgaagttt taaatcaatc taaagtatat atgagtaaac ttggtctgac
     7141 agttaccaat gcttaatcag tgaggcacct atctcagcga tctgtctatt tcgttcatcc
     7201 atagttgcct gactccccgt cgtgtagata actacgatac gggagggctt accatctggc
     7261 cccagtgctg caatgatacc gcgagaccca cgctcaccgg ctccagattt atcagcaata
     7321 aaccagccag ccggaagggc cgagcgcaga agtggtcctg caactttatc cgcctccatc
     7381 cagtctatta attgttgccg ggaagctaga gtaagtagtt cgccagttaa tagtttgcgc
     7441 aacgttgttg ccattgctac aggcatcgtg gtgtcacgct cgtcgtttgg tatggcttca
     7501 ttcagctccg gttcccaacg atcaaggcga gttacatgat cccccatgtt gtgcaaaaaa
     7561 gcggttagct ccttcggtcc tccgatcgtt gtcagaagta agttggccgc agtgttatca
     7621 ctcatggtta tggcagcact gcataattct cttactgtca tgccatccgt aagatgcttt
     7681 tctgtgactg gtgagtactc aaccaagtca ttctgagaat agtgtatgcg gcgaccgagt
     7741 tgctcttgcc cggcgtcaat acgggataat accgcgccac atagcagaac tttaaaagtg
     7801 ctcatcattg gaaaacgttc ttcggggcga aaactctcaa ggatcttacc gctgttgaga
     7861 tccagttcga tgtaacccac tcgtgcaccc aactgatctt cagcatcttt tactttcacc
     7921 agcgtttctg ggtgagcaaa aacaggaagg caaaatgccg caaaaaaggg aataagggcg
     7981 acacggaaat gttgaatact catactcttc ctttttcaat attattgaag catttatcag
     8041 ggttattgtc tcatgagcgg atacatattt gaatgtattt agaaaaataa acaaataggg
     8101 gttccgcgca catttccccg aaaagtgcca cctgacgtct aagaaaccat tattatcatg
     8161 acattaacct ataaaaatag gcgtatcacg aggccctttc gtctcgcgcg tttcggtgat
     8221 gacggtgaaa acctctgaca catgcagctc ccggagacgg tcacagcttg tctgtaagcg
     8281 gatgccggga gcagacaagc ccgtcagggc gcgtcagcgg gtgttggcgg gtgtcggggc
     8341 tggcttaact atgcggcatc agagcagatt gtactgagag tgcaccatat gcggtgtgaa
     8401 ataccgcaca gatgcgtaag gagaaaatac cgcatcaggc gccattcgcc attcaggctg
     8461 cgcaactgtt gggaagggcg atcggtgcgg gcctcttcgc tattacgcca gctggcgaaa
     8521 gggggatgtg ctgcaaggcg attaagttgg gtaacgccag ggttttccca gtcacgacgt
     8581 tgtaaaacga cggccagtgc caagctg
//
